Mac?Studio - Technical Specifications

?
Mac?Studio, Model1
Mac?Studio, Model2
Finish
Front view of Mac Studio

Silver

Price
Chip

Apple M4?Max chip

  • 14-core CPU with 10 performance cores and 4 efficiency cores
  • 32-core GPU
  • Hardware-accelerated ray tracing
  • 16-core Neural?Engine
  • 410GB/s memory bandwidth

Media?Engine

  • Hardware-accelerated H.264, HEVC, ProRes and ProRes?RAW
  • Video decode engine
  • Two video encode engines
  • Two ProRes encode and decode engines
  • AV1 decode

Configurable to:

M4?Max with 16?core CPU, 40?core GPU and 16?core Neural?Engine (546GB/s memory bandwidth)

Apple?M3?Ultra chip

  • 28-core CPU with 20 performance cores and 8 efficiency cores
  • 60-core GPU
  • Hardware-accelerated ray tracing
  • 32-core Neural?Engine
  • 819GB/s memory bandwidth

Media?Engine

  • Hardware-accelerated H.264, HEVC, ProRes and ProRes?RAW
  • Two video decode engines
  • Four video encode engines
  • Four ProRes encode and decode?engines
  • AV1 decode

Configurable to:

M3?Ultra with 32?core CPU, 80?core GPU and 32?core Neural?Engine (819GB/s memory bandwidth)

Apple Intelligence1

Apple?Intelligence is the personal intelligence system that helps you write, express yourself and get things done effortlessly. With groundbreaking privacy protections, it gives you peace of mind that no one else can access your data — not even Apple.

Learn more

Memory

36GB

36GB unified memory

Configurable to:

48GB, 64GB or 128GB (M4?Max with 16-core CPU and 40?core?GPU)

96GB

96GB unified memory

Configurable to:

256GB or 512GB (M3?Ultra with 32-core CPU and 80?core?GPU)

Storage2

512GB

512GB SSD

Configurable to:

1TB, 2TB, 4TB
or?8TB

1TB

1TB SSD

Configurable to:

2TB, 4TB, 8TB
or?16TB

Display Support

M4?Max

Simultaneous support for up to five?displays:

  • Up to four displays with 6K resolution at 60Hz over Thunderbolt and one display with 4K resolution at 144Hz over HDMI
  • Up to two displays with 6K resolution at 60Hz over Thunderbolt and one display with 8K resolution at 60Hz or 4K resolution at up to 240Hz over HDMI

M3?Ultra

Simultaneous support for up to eight displays:

  • Eight displays with up to 6K resolution at 60Hz or 4K resolution at up to 144Hz
  • Four displays with up to 8K resolution at 60Hz or 4K resolution at up to 240Hz

Thunderbolt?5 digital video output

  • Support for native DisplayPort?2.1 output over USB?C

HDMI display video output

  • Support for one display with up to 8K resolution?at?60Hz or 4K resolution at 240Hz
  • Support for variable refresh rate (VRR), HDR and multi-channel audio
Audio
  • Built-in speaker
  • 3.5mm headphone jack with advanced support for high-impedance headphones
  • HDMI port supports multi-channel audio output
Connections and Expansion
Back view of Mac Studio showcasing the back ports

Thunderbolt?5

10Gb
Ethernet

USB-A

HDMI
2.1

3.5mm headphone jack

Four Thunderbolt?5 (USB?C) ports with support?for:

  • Thunderbolt?5 (up to 120Gb/s)
  • USB?4 (up to 120Gb/s)
  • USB?3 (up to 10Gb/s)
  • DisplayPort?2.1
  • Two USB?3 (USB?A) ports (up to 5Gb/s)
  • HDMI?2.1 port
  • 10Gb?Ethernet
  • 3.5mm headphone jack

On front (M4?Max):

  • Two USB?C ports (up to 10Gb/s)
  • SDXC card slot (UHS-II)

On front (M3?Ultra):

  • Two Thunderbolt?5 ports (up to 120Gb/s)
  • SDXC card slot (UHS-II)
Communications

Wi?Fi

  • Wi?Fi?6E (802.11ax)3

Bluetooth

  • Bluetooth?5.3

Ethernet

  • 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb and 10Gb Ethernet using RJ?45 connector)
Size and Weight
  • Height: 9.5?cm (3.7?inches)
  • Width: 19.7?cm (7.7?inches)
  • Depth: 19.7?cm (7.7?inches)
  • Weight (M4?Max): 2.74 kg (6.1 pounds)4
  • Weight (M3?Ultra): 3.64 kg (8.0 pounds)4
Top view of Mac Studio
Width: 19.7?cm (7.7?inches)
Depth: 19.7?cm (7.7?inches)
Front view of Mac Studio
Depth: 9.5?cm (3.7?inches)
Electrical and Operating Requirements
  • Line voltage: 100–240V?AC
  • Frequency: 50Hz to 60Hz, single phase
  • Maximum continuous power: 480W
  • Operating temperature: 10° to 35°?C (50° to 95°?F)
  • Storage temperature: –40° to 47°?C (–40° to 116°?F)
  • Relative humidity: 5% to 95% non-condensing
  • Operating altitude: tested up to 5,000 metres (16,400 feet)
Limited Warranty and Service

In Ireland, consumers are entitled to a free-of-charge repair or replacement, by the seller, of goods that do not conform with the contract of sale. Under Irish law, consumers have up to six years from the date of delivery to exercise their rights; however, various factors may impact your eligibility to receive these remedies. For more details, click?here.

Your Mac?Studio also comes with 90 days of complimentary technical support and a one-year limited warranty from Apple. To learn more about how Apple will service your Mac?Studio, click?here.

Purchase AppleCare+ to get up to three years of expert technical support and hardware coverage, including unlimited repairs for accidental damage from handling, each subject to an excess fee. For more information, click?here.

In the Box
  • Mac?Studio
  • Power lead

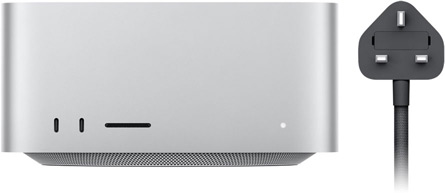

Mac Studio alongside its power lead
Operating System

macOS

macOS is the most advanced desktop operating system in the world. macOS?Sequoia helps you be productive and creative in new ways — with Apple?Intelligence,1 window tiling, major updates to Safari and more.

Learn more

Accessibility

Accessibility features help people with disabilities get the most out of their new Mac?Studio. With built-in support for vision, hearing, mobility and learning, you can create and do amazing things.

Features include:

  • VoiceOver
  • Zoom
  • Increase Contrast
  • Reduce?Motion
  • Siri and Dictation
  • Switch?Control
Built-in Apps5
App?Store
Books
Calendar
Contacts
FaceTime
Find?My
Freeform
GarageBand
Home
iMovie
Keynote
Mail
Maps
Messages
Music
Notes
Numbers
Pages
Passwords
Photo Booth
Photos
Podcasts
Preview
QuickTime Player
Reminders
Safari
Shortcuts
Stocks
Time Machine
Tips
TV
Voice Memos
Weather
Configure to Order

Configure your Mac?Studio with these options at apple.com:

  • M4?Max with 16?core CPU, 40?core GPU and 16?core Neural?Engine
  • 48GB, 64GB or 128GB unified memory (M4?Max with 16-core CPU and 40?core?GPU)
  • 1TB, 2TB, 4TB or 8TB?SSD
  • M3?Ultra with 32?core CPU, 80?core GPU and 32?core Neural?Engine
  • 256GB unified memory
  • 512GB unified memory (M3?Ultra with 32-core CPU and 80?core?GPU)
  • 2TB, 4TB, 8TB or 16TB?SSD

Mac?Studio and?the Environment

Mac?Studio is designed to reduce environmental impact:6

See the Mac?Studio Product Environmental Report?(PDF)

Progress towards Apple 2030

  • More than 30%?recycled content7
  • Over 35% of manufacturing electricity sourced from low-carbon electricity8
  • Over 30% emissions reduction against business-as-usual scenario as modelled by Apple9
See Apple’s commitment

Materials

  • 100% recycled aluminium in the enclosure and thermal module chassis
  • 100% recycled copper in multiple printed circuit boards
  • 100% recycled gold in the plating of all Apple-designed printed circuit boards and multiple connectors
  • 100% recycled rare earth elements in all magnets
  • 100% recycled tin in the solder of multiple printed circuit boards
  • 100% recycled copper and zinc in the pins of the power lead plug and AC inlet
  • At least 25% recycled plastic in three components
  • 100% fibre-based packaging10
  • 59% recycled content in fibre-based packaging

Energy

  • Over 35% of manufacturing electricity for Mac?Studio is sourced from low-carbon electricity
  • ENERGY?STAR? certified11

Waste

  • No established final assembly sites generate waste sent to landfill as part of Apple’s Zero Waste Programme

Smarter chemistry12

  • Mercury-, BFR- and PVC?free
