Mac Studio - Technical Specifications


Mac Studio, Model1
Mac Studio, Model2
Finish
Front view of Mac Studio

Silver

Price
Chip

Apple M4 Max chip

  • 14-core CPU with 10 performance cores and 4 efficiency cores
  • 32?core GPU
  • Hardware-accelerated ray?tracing
  • 16-core Neural Engine
  • 410GB/s memory bandwidth

Media Engine

  • Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
  • Video decode engine
  • Two video encode engines
  • Two ProRes encode and decode?engines
  • AV1 decode

Configurable to:

  • M4 Max with 16?core CPU, 40?core GPU and 16?core Neural Engine (546GB/s memory bandwidth)

Apple M3 Ultra chip

  • 28-core CPU with 20 performance cores and 8 efficiency cores
  • 60-core GPU
  • Hardware-accelerated ray?tracing
  • 32-core Neural Engine
  • 819GB/s memory bandwidth

Media Engine

  • Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
  • Two video decode engines
  • Four video encode engines
  • Four ProRes encode and decode engines
  • AV1 decode

Configurable to:

  • M3 Ultra with 32?core CPU, 80?core GPU and 32?core Neural Engine (819GB/s memory bandwidth)
Apple Intelligence1

Apple Intelligence is the personal intelligence system that helps you write, express yourself and get things done effortlessly. With groundbreaking privacy protections, it gives you peace of mind that no one else can access your data — not even Apple.

Learn more

Memory

36GB

  • 36GB unified memory

Configurable to:

  • 48GB, 64GB or 128GB (M4 Max with 16?core?CPU and 40?core?GPU)

96GB

  • 96GB unified memory

Configurable to:

  • 256GB or 512GB (M3 Ultra with
    32?core CPU and 80?core?GPU)
Storage2

512GB

  • 512GB SSD

Configurable to:

  • 1TB, 2TB, 4TB or 8TB

1TB

  • 1TB SSD

Configurable to:

  • 2TB, 4TB, 8TB or 16TB
Display Support

M4 Max

Simultaneous support for up to five displays:

  • Up to four displays with 6K resolution at 60Hz over Thunderbolt and one display with 4K resolution at 144Hz over HDMI
  • Up to two displays with 6K resolution at 60Hz over Thunderbolt and one display with 8K resolution at 60Hz or 4K resolution at up to 240Hz over HDMI

M3 Ultra

Simultaneous support for up to eight displays:

  • Eight displays with up to 6K resolution at 60Hz or 4K resolution at up to 144Hz
  • Four displays with up to 8K resolution at 60Hz or 4K resolution at up to 240Hz

Thunderbolt 5 digital video output

  • Support for native DisplayPort 2.1 output over USB?C

HDMI display video output

  • Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz
  • Support for variable refresh rate (VRR), HDR and multi-channel audio
Audio
  • Built-in speaker
  • 3.5mm headphone jack with advanced support for high-impedance headphones
  • HDMI port supports multi-channel audio?output
Connections and Expansion
Back view of Mac Studio showcasing the back ports

Thunderbolt 5

10Gb
Ethernet

USB-A

HDMI
2.1

3.5mm headphone jack

Four Thunderbolt 5 (USB?C) ports with support?for:

  • Thunderbolt 5 (up to 120 Gbps)
  • USB 4 (up to 120 Gbps)
  • USB 3 (up to 10 Gbps)
  • DisplayPort 2.1
  • Two USB 3 (USB?A) ports (up to 5 Gbps)
  • HDMI 2.1 port
  • 10Gb Ethernet
  • 3.5mm headphone jack

On front (M4 Max):

  • Two USB?C ports (up to 10 Gbps)
  • SDXC card slot (UHS-II)

On front (M3 Ultra):

  • Two Thunderbolt 5 ports (up to 120 Gbps)
  • SDXC card slot (UHS-II)
Communications

Wi-Fi

  • Wi-Fi 6E (802.11ax)3

Bluetooth

  • Bluetooth 5.3

Ethernet

  • 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb and 10Gb Ethernet using RJ-45 connector)
Size and Weight
  • Height: 9.50cm
  • Width: 19.70cm
  • Depth: 19.70cm
  • Weight (M4 Max): 2.74kg4
  • Weight (M3 Ultra): 3.64kg4
Top view of Mac Studio
Width: 19.70cm
Depth: 19.70cm
Front view of Mac Studio
Height: 9.50cm
Electrical and Operating Requirements
  • Line voltage: 100V to 240V AC
  • Frequency: 50Hz to 60Hz, single phase
  • Maximum continuous power: 480W
  • Operating temperature: 10° to 35° C
  • Storage temperature: –40° to 47° C
  • Relative humidity: 5% to 95% non-condensing
  • Operating altitude: tested up to 5,000 metres
Limited Warranty and Service

Your Mac Studio comes with 90 days of complimentary technical support and a one?year limited warranty. Purchase AppleCare+ for Mac to extend your coverage to three years from your AppleCare+ purchase date and add unlimited repairs for accidental damage from handling, each subject to a service fee of S$138 for screen damage or external enclosure damage, or S$428 for other repairable accidental damage.

Learn more

In the Box
  • Mac Studio
  • Power cable

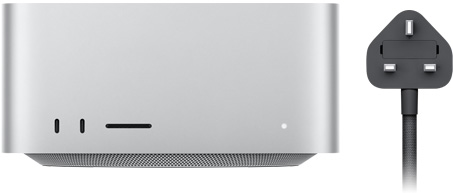

Mac Studio alongside its power cable
Operating System

macOS

macOS is the most advanced desktop operating system in the world. macOS Sequoia helps you be productive and creative in new ways — with Apple Intelligence,1 iPhone Mirroring,5 window tiling, major updates to Safari and?more.

Learn more

Accessibility

Accessibility features help people with disabilities get the most out of their new Mac Studio. With built-in support for vision, hearing, mobility and learning, you can create and do amazing things.

Learn more

Features include:

  • VoiceOver
  • Zoom
  • Increase Contrast
  • Reduce Motion
  • Siri and Dictation
  • Switch Control
    Built-in Apps6
    App Store
    Books
    Calendar
    Contacts
    FaceTime
    Find My
    Freeform
    GarageBand
    Home
    iMovie
    iPhone Mirroring
    Keynote
    Mail
    Maps
    Messages
    Music
    Notes
    Numbers
    Pages
    Passwords
    Photo Booth
    Photos
    Podcasts
    Preview
    QuickTime Player
    Reminders
    Safari
    Shortcuts
    Stocks
    Time Machine
    Tips
    TV
    Voice Memos
    Weather
    Configure to Order

    Configure your Mac Studio with these options at apple.com:

    • M4 Max with 16-core CPU, 40?core GPU and 16?core Neural Engine
    • 48GB, 64GB or 128GB unified memory (M4 Max with 16-core CPU and 40?core?GPU)
    • 1TB, 2TB, 4TB or 8TB SSD
    • M3 Ultra with 32?core CPU, 80?core GPU and 32?core Neural Engine
    • 256GB unified memory
    • 512GB unified memory (M3 Ultra with 32?core CPU and 80?core GPU)
    • 2TB, 4TB, 8TB or 16TB SSD

    Mac Studio and the Environment

    Mac Studio is designed to reduce environmental impact:7

    See the Mac Studio Product Environmental Report (PDF)

    Progress towards Apple 2030

    • More than 30% recycled content8
    • Over 35% of manufacturing electricity sourced from low?carbon electricity9
    • Over 30% emissions reduction against business-as-usual scenario as modelled by?Apple10
    See Apple’s commitment

    Materials

    • 100% recycled aluminium in the enclosure and thermal module chassis
    • 100% recycled copper in multiple printed circuit boards
    • 100% recycled gold in the plating of all Apple-designed printed circuit boards and multiple?connectors
    • 100% recycled rare earth elements in all?magnets
    • 100% recycled tin in the solder of multiple printed circuit boards
    • 100% recycled copper and zinc in the prongs of the power cable plug and AC inlet
    • At least 25% recycled plastic in three components
    • 100% fibre-based packaging11
    • 59% recycled content in fibre-based packaging

    Energy

    • Over 35% of manufacturing electricity for Mac Studio is sourced from low?carbon electricity
    • ENERGY STAR? certified12

    Waste

    • No established final assembly sites generate waste sent to landfill as part of Apple’s Zero Waste Programme

    Smarter chemistry13

    • Mercury-, BFR- and PVC-free
